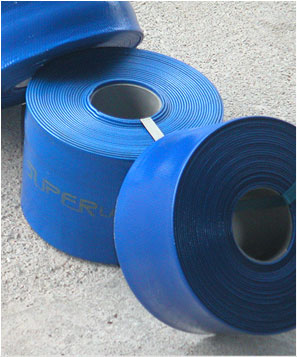

Lay Flat Hose

Features

  • Light weight, tough & economical
  • Flexible, soft, pliable & compact
  • Easy to stack-up & transport
  • Resistant to wear & tear. Durable
  • Do not rust, corrode or require cathode protection

Applications

  • Common Water (liquid) Supply or Drainage
    - Construction Site Boring, Watering & De-watering

  • Agriculture
    - Sprinkle irrigation of farms
    - Spraying some liquid fertiliser & Agriculture chemical
    - De-watering

  • Municipalities
    - Emergency Sewage & Floor Lines

  • Construction
    - De-watering
    - Pumping
    - Waste-water Disposal

  • Marine
    - Unloading Vessels
    - Sub-Marine exploration

Characteristics

  • Working pressure is 3-7cm2 (45-100psi)
  • Easy to handle
  • Long length, long life

Structure

  • High tenacity polyester yarn thread is use for netting and fusion adhered perfectly in and outside the hose with the soft PVC compound. It is durable against the tube and cover pressure

Specification

Grade A

Size I.D. Thickness Pressure(kg/cm2) 200C Length
(inch) (mm) (mm) Working Bursting (Mtr)
2 52 1.35 4.5 14.0 100
3 77 1.50 4.0 12.0 100
4 103 1.55 4.0 12.0 100
6 153 1.85 3.0 10.0 100
8 207 2.3 3.0 9.0 100

(note : I.D & Thickness can be allowed within 5% variation)

Grade C

Size I.D. Thickness Pressure(kg/cm2) 200C Length
(inch) (mm) (mm) Working Bursting (Mtr)
2 52 1.20 4.5 13.0 100
3 77 1.35 3.5 10.0 100
4 103 1.35 3.0 10.0 100
6 153 1.60 3.0 9.0 100
8 207 2.3 3.0 9.0 100

(note : I.D & Thickness can be allowed within 5% variation)
